Cod : R97-38SM48X2C

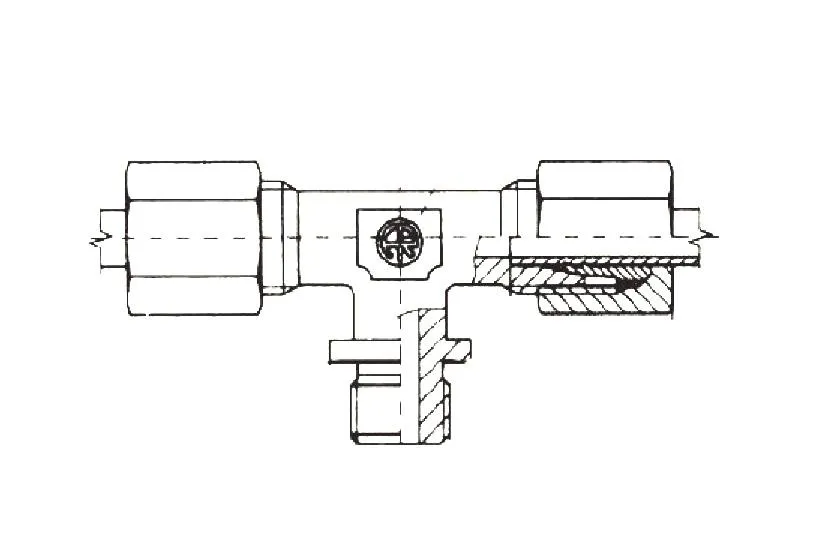

Descriere : TN 97 - 38SM 48x2 TEU INS CENTRAL METRIC CORP
Descriere alternativa: TN 97 - 38SM
Divizie : TUBIflex
Familie : RT - 11. Racorduri hidraulice DIN 2353
Grup : RTFE - 07.03. Racorduri cu filet exterior
Categorie : RTFE97 - 07.03.10. TN 97 Teu insurubat central filet cilindric
Subcategorie : 97SM - 07.03.10.07. TN 97 SM Teu insurubat central filet METRIC
Barcode : 0025498
Clasificare :
Clasa Articol : 1
Folosit pe web : Da
Unitate de masura : BUC
Unitate de masura(decimale) : 0
Unitate de masura(descriere) : Bucăți
Standard : DIN 2353/ISO 8434-1
Caracteristici :
| Propietate | Descriere |
|---|---|
| PN | 250 |
| Diametru teava | 38 |
| Ød1 | 38 |
| F | M48x2 |
| CH1 | 60 |
| CH2 | 50 |
| ØN | 55 |
| I | 22 |
| L | 72 |
| L1 | 41 |
| L3 | 39 |
